BESDER 4X Auto Zoom Motorized Lens 2.8 12mm 1080P 960P Surveillance Security PoE NVR Kit 4CH 8CH PoE Outdoor Bullet CCTV System-in Surveillance System from Security & Protection

Scroll to product details, material & care and sizing

$ 552.31

Add to cart Add to wishlist

Term:
wifi ip camera waterproof infrared, video surveillance system with 4 cameras, camera wifi wireless waterproof, Wholesale wifi ip camera waterproof infrared, Wholesale 4 camera wireless, Wholesale nvr for poe, Wholesale cctv ip, Wholesale 8 pcs video camera, Wholesale kit onvif, Wholesale besder, Wholesale camera system, Wholesale 8ch hd video,

BESDER 4X Auto Zoom Motorized Lens 2.8-12mm 1080P 960P Surveillance Security PoE NVR Kit 4CH 8CH PoE Outdoor Bullet CCTV System Details & Specification :

Item Specifications
TV System PAL
TV System NTSC
Resolution 1080P
Brand Name BESDER

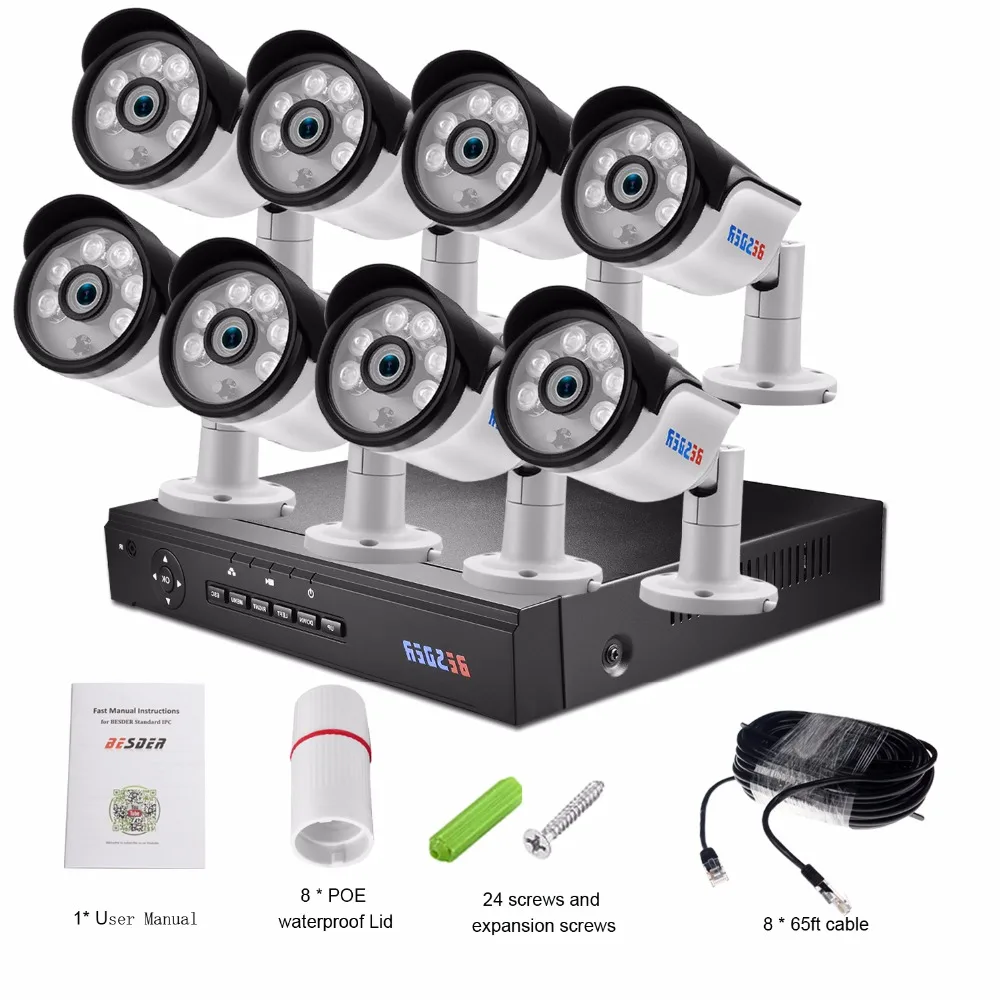

PCS of Camera 8pcs

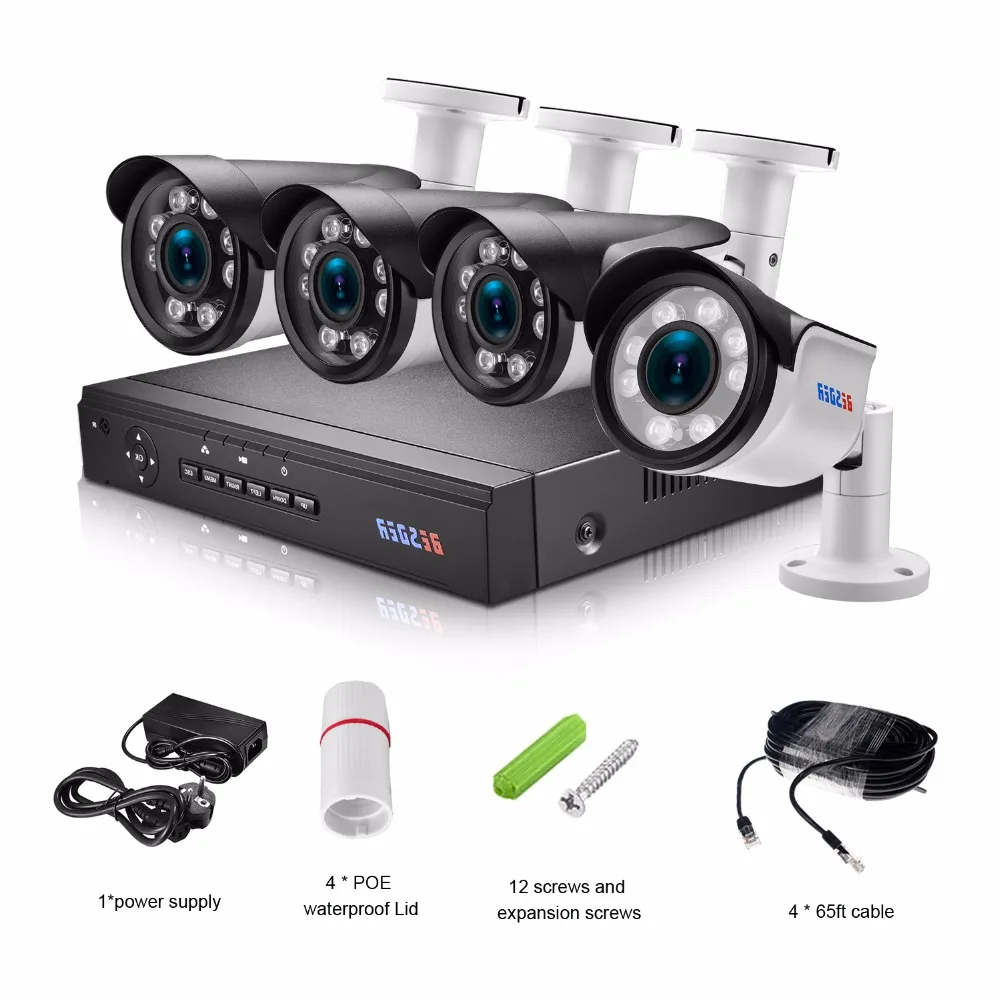

PCS of Camera 4PCS
Cable Length 20m
Video Input 4 Channel
Model Number BES-P4CH24V-9008MW-AF
Resulotion Full HD 1080P/ HD 960P Optional
NVR 4CH /8CH 1080P HDMI PoE NVR
Cameras Processor 1080P SONY IMX322/ 960P AR0130
Metial Metal, Waterproof IP67
Technology P2P icloud, plug and play
IR distance up to 30M
Lens 4X Auto Zoom 2.8mm-12mm
APP XMEye for Android & iPhone
Motion Detect/Email Alert Support
PoE Transmission Distance Up to 150 meters







5683

0203(2)

8CH7

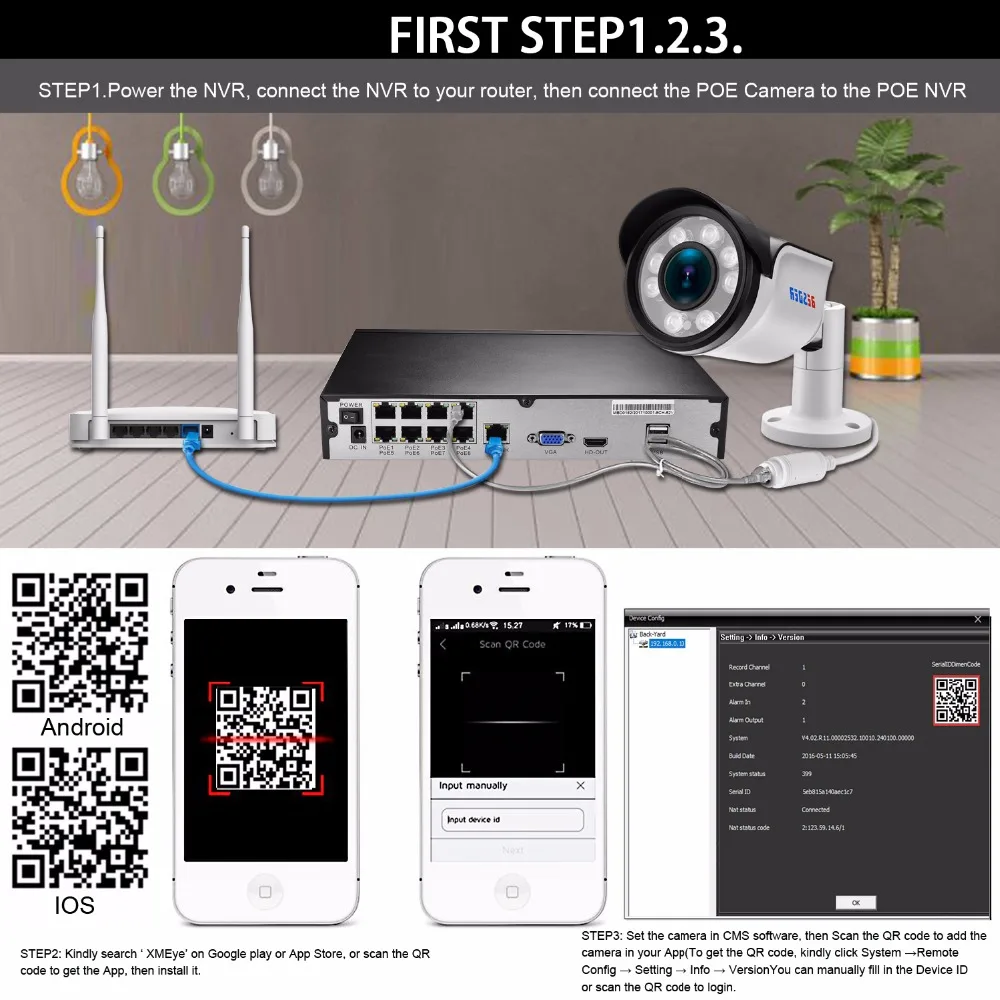

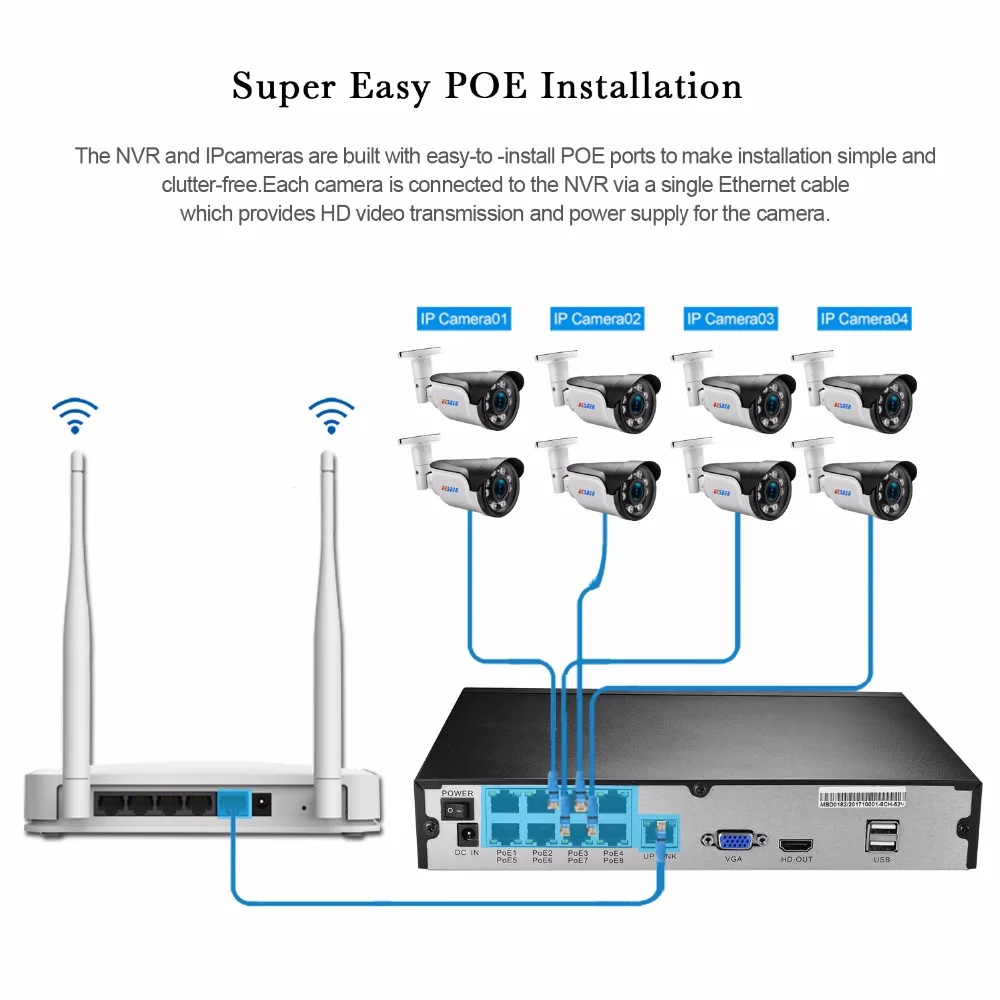

POE - Easy Setup, Even For  a Beginner

A real plug and play security system! With a single network cable connecting each IP camera to the NVR for both power supply and video singal transmission.



2POE_03

















1products specification









More Advantage



1.Simplify installation and reduce

2.Digital 1080P/960P for crystal clear videos

3.Easy remote access

4.Motion detection& E-mail alert

5.P2P cloud technology

6.Loop recording& Playback

7.HDMI and VGA interface choice of output port

8.Save installation cost with Power over Ethernet

9.Up to 150 Meters PoE Distance without signal loose

10.With auto zoom motorized lens,can configure the lens by APP or NVR PTZ menu

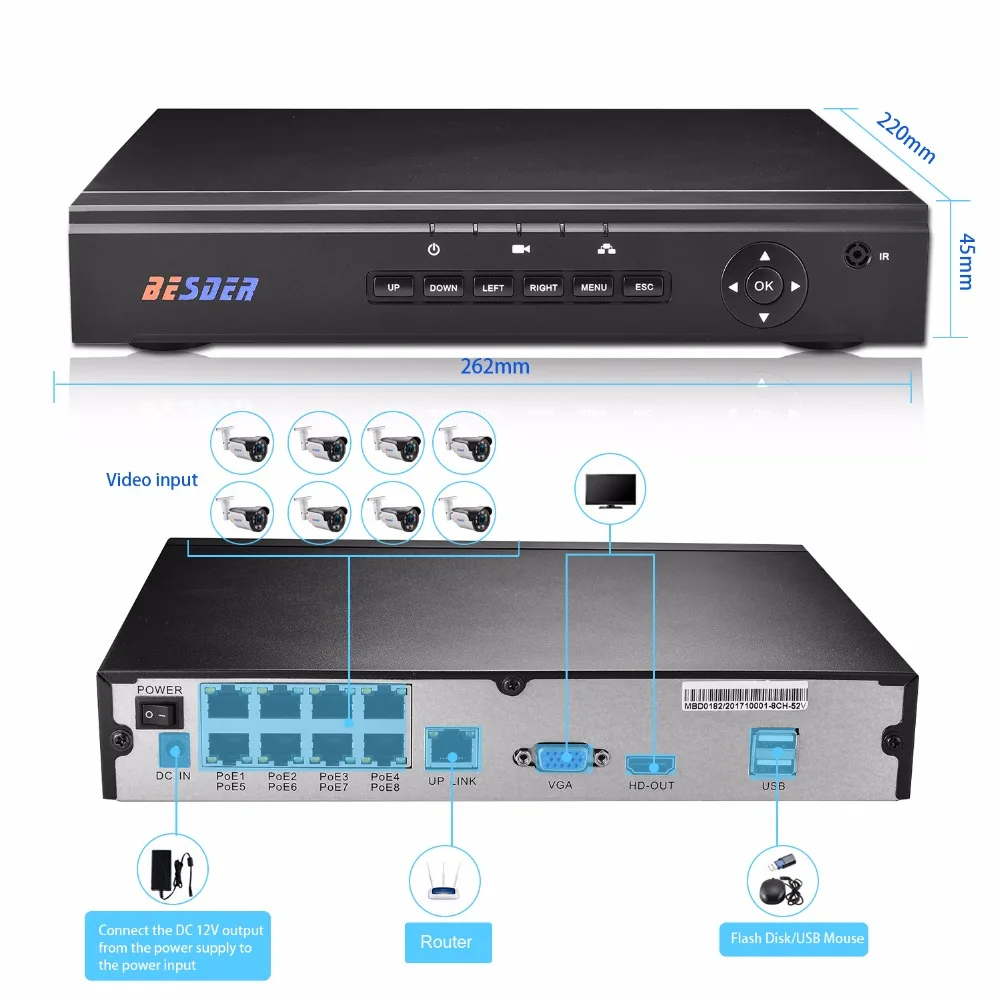

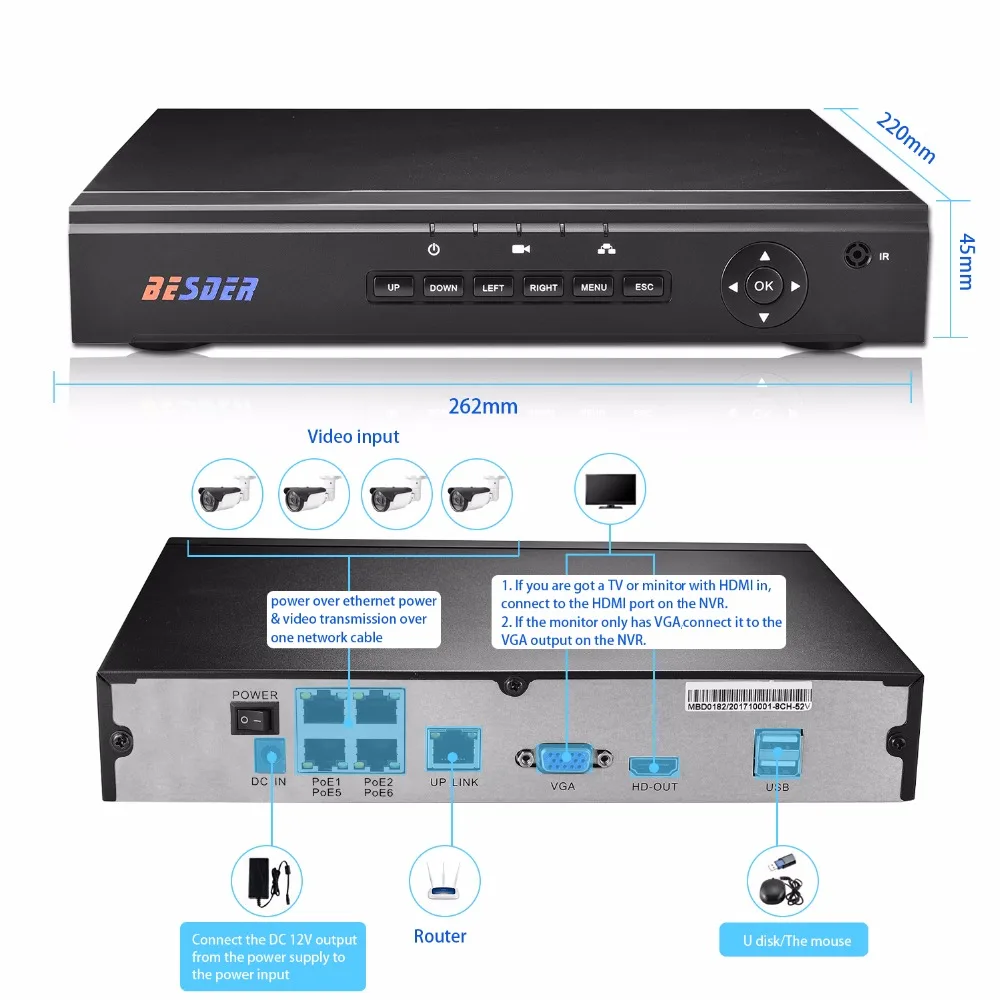

NVR Specification :



Main processor : HI3520D

Operating System : Embedded Linux

System Resources : Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Operator interface :16-bit true color graphic menu operation interface, support mouse operation

Preview :  1/4/8

Video input (IP) : 4CH : 4*1080P ; 8CH 8*1080P

Video standards : PAL(625TVL,50f/s);NTSC(525TVL,60f/s)

Video compression H.264

Display quality Max:Max 1080P

Playback quality : 4CH :1*1080P   8CH : 2*1080P

Motion detection : Depend on camera

Audio compression :G.711A

Recording mode :Manual>Alarm>Video Detection>Continuous

Search mode search by Time/calendar/event/channel

Record Storage :HDD ,network

Backup mode : Network backup, USB hard disk, USB burner, SATA burner

Video output : 1ch HDMI HD output(can be extended to support VGA)

Network interface : 1* 10M/100M Adaptive Ethernet port,(4)8 POE ports

USB interface :2*USB2.0 port

Hard disk Port: 1*SATA(Up to 8TB )

PTZ control :Control PTZ device by network

PoE Standard :IEEE802.3af With 15.4W Output Each Port

Power supply : 24V/3A For 8CH/24V 5A For 4CH

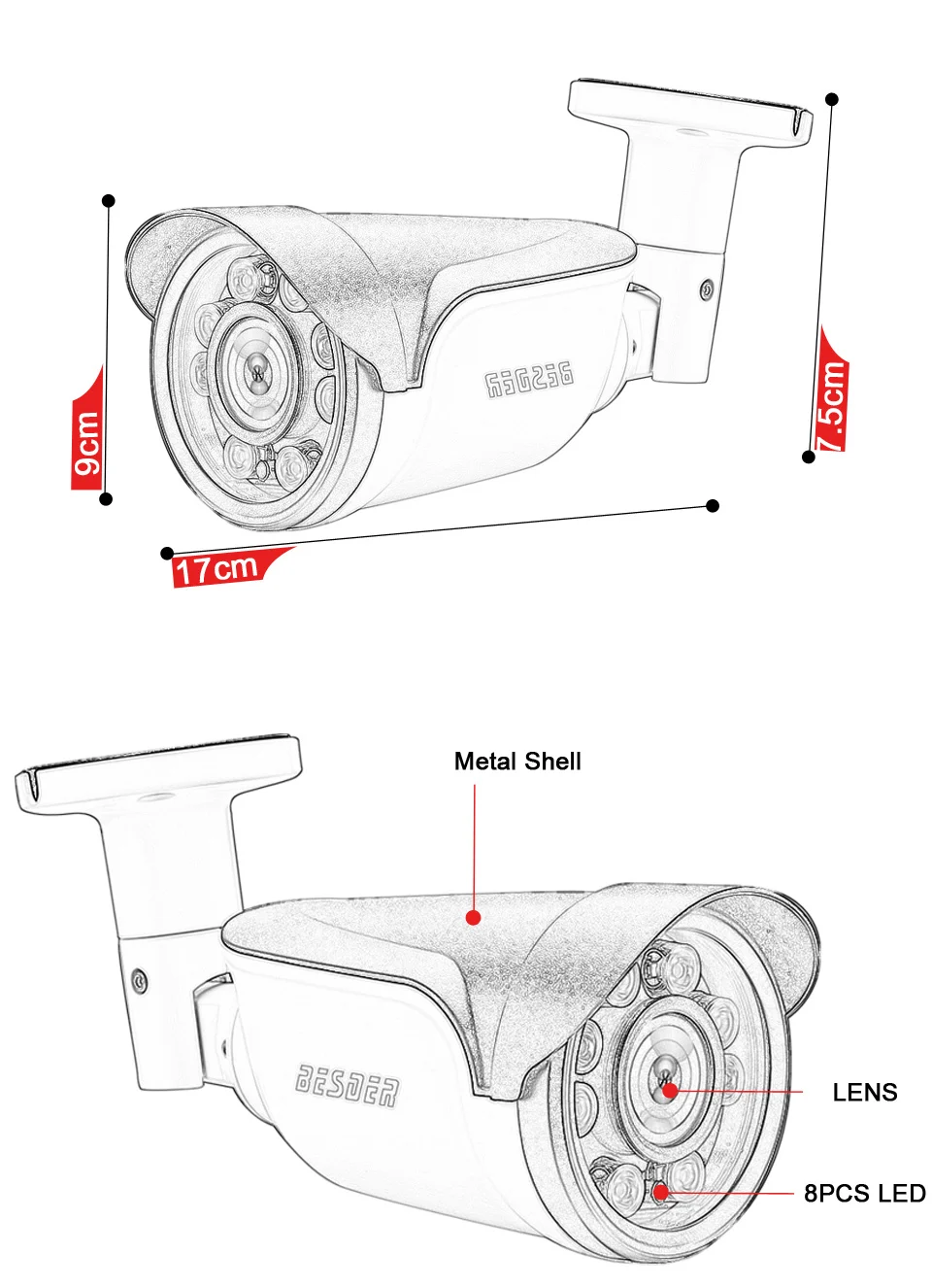

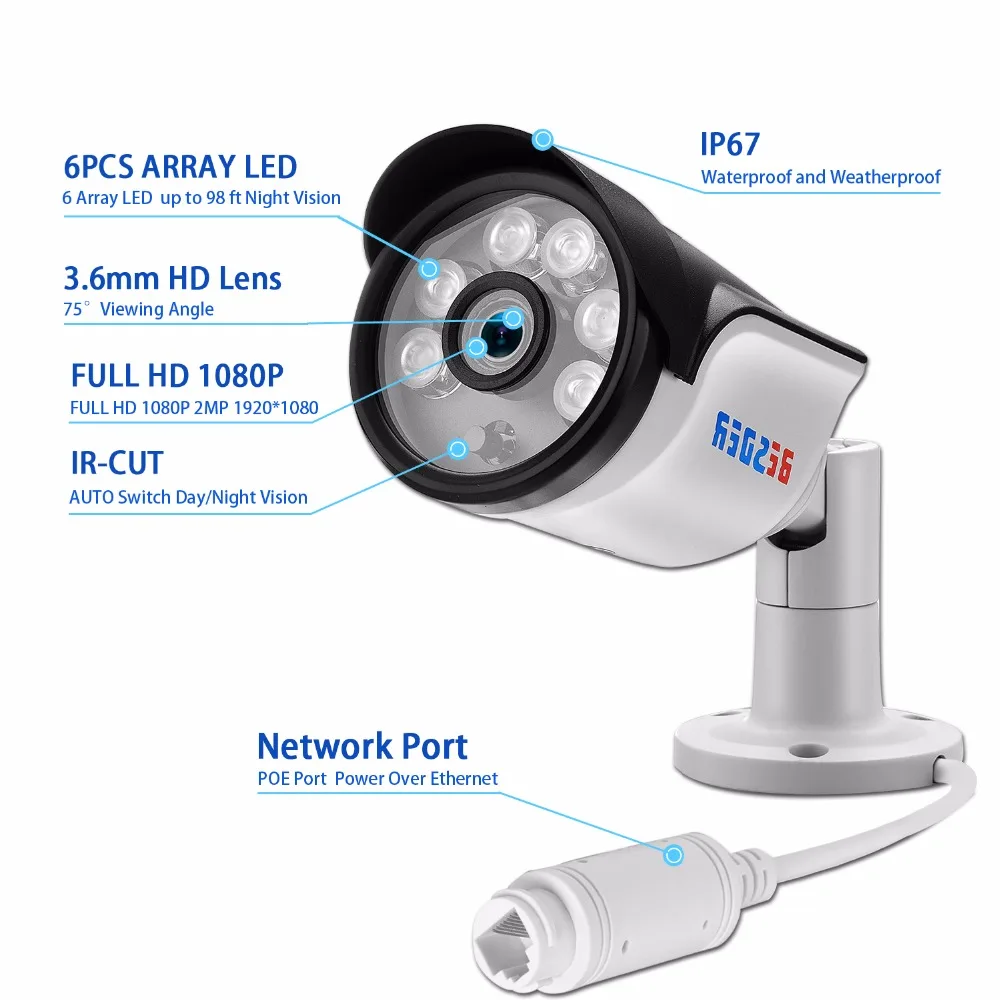

PoE Cameras Specification :





IP Camera

Image Sensor

1080P 1/2.8'' SONY IMX322

960P : 1/3'' AR0130



Effective Pixels

1920X1080  /1280X960

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3(1/4)~1/10000

Min. Illumination

1080P :Color 0.01Lux ; B/W 0.001Lux

Lens

Auto zoom 2.8-12mm lens 4X

LED

8pcs ARRAY IR LED With 40M IR Distance

Video

Resolution

1080P(1920X1080)

960P (1280X960)

Main Stream

1080P /960P

Sub Stream

D1/CIF

S/N Ratio

>50dB

Compression

H.264

Day/Night

Auto Day&night Conversion

Backlight Compensation

Auto

White Balance

Auto

Gain Control

Auto

Network

Ethernet

RJ-45 (10/100Base-T)

ONVIF

ONVIF2.0

Smart Phone

iPhone, Android

Browser

IE

General

PoE Version

24 V PoE ,powered by PoE NVR

Power Consumption

<6W

Working Environment

-20°C~+60°C, 10%~90%











2products display
